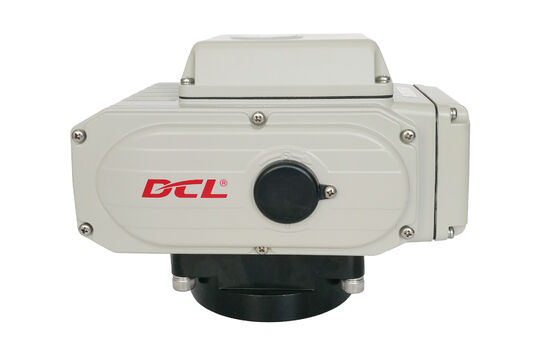

CSA UL 400Nm Fail-safe return Weather-proof Quarter Turn Electric Actuator
제품 상세 정보
| 제품명 | 쿼터 턴 전기 액추에이터 | 인증 | CSA |
|---|---|---|---|
| 설치 각도 | 360° | 총 중량 | 1.2kg ~ 20kg |
| 모터 파워 | 6W ~ 140W | 특징 | 비상장 |
제품 설명
CSA certificated quarter turn electric actuator/complied to UL standard
Features:
- Torque from 18Nm to 3000Nm/160in.lbs to 26550 in.lbs
- All parts are certified by CSA, complied to UL 429 and CSA C22.2
- Weather proof NEMA 4/4X and IP67 sealing grade with aluminum alloy housing cover/IP 68 optional
- Duty cycle 60% for 18Nm/160in.lbs model and 70% for all other model
- Self-locking at any position when power off
- Limit switches to confirm valve position/potentiometer or position transmitter optional
- ISO 5211 multi-flange mounting
- Manual override with wrench or handwheel
- Optional functions such as Modbus Communication,fail-safe return,over torque protection,Dehumidifying heater and so on.
Description
Since 2013, DCL’s common-series electric actuators from Huayi Technology have been CSA certified, fully complying with both U.S. (UL) and Canadian (CSA) standards. Our explosion-proof models are currently undergoing CSA testing, with certification expected in Q3–Q4 of 2020. Furthermore, all DCL products are CE marked and RoHS 3.0 compliant, with all testing conducted by SGS to ensure international environmental and safety alignment.
Quality control is maintained through a rigorous oversight framework: any modification to components or suppliers must be documented and approved by the CSA. Additionally, CSA experts from both the Canadian headquarters and China offices perform quarterly factory audits. This strict adherence to UL and CSA protocols ensures exceptional quality stability and has earned DCL broad recognition across the North American market.
Specification:
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
|---|---|---|---|---|---|---|
| DCL-02 | 15S/18Nm | 7S/9Nm 60S/18Nm | 0~90°Adjustable | 1.2Kg | DC24V/AC24V AV110V/AC220V | Types of A/B/E/G |
| DCL-05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 2.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~360°Adjustable | 4.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 9Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 9.5Kg | |||
| DCL-60 | 45S/600Nm | 10Kg | ||||
| DCL-100 | 30S/1000Nm | 15S/500Nm | 0~90°Adjustable | 19Kg | AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/H |
| DCL-200 | 92S/2000Nm | 19.5Kg | ||||
| DCL-300 | 110S/3000Nm | 20Kg | ||||
| Performance Parameters List of Adjusting type(Type E) | ||||||
| DCL-MZZ | 18Nm | 3r | 1.2Kg | DC24V | Type MZZ | |
| DCL-10GE | 30S/0~100Nm | 15S/0~100Nm | 0~90°Adjustable | 4.5Kg | DC24V±10% | Type GE |
| DCL-40GE | 30S/100~600Nm | 15S/100~600Nm | 9.5Kg | |||
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
|---|---|---|---|
| DCL-02 | ≤DN40 | ≤DN32 | |
| DCL-05 | DN50~65 | DN40 | DN50~80 |
| DCL-10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-40 | DN200 | DN125 | DN350~450 |
| DCL-60 | DN250 | DN150 | DN500~600 |
| DCL-100 | DN300 | DN200 | DN700~800 |
| DCL-200 | DN350~400 | DN250 | DN900 |
| DCL-300 | DN450~600 | DN300~350 | DN1000~1200 |
About Us:
Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.
DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
